N-type TOPCon Bi-Facial Module
25 Years Power Warranty
10 Years Product Warranty

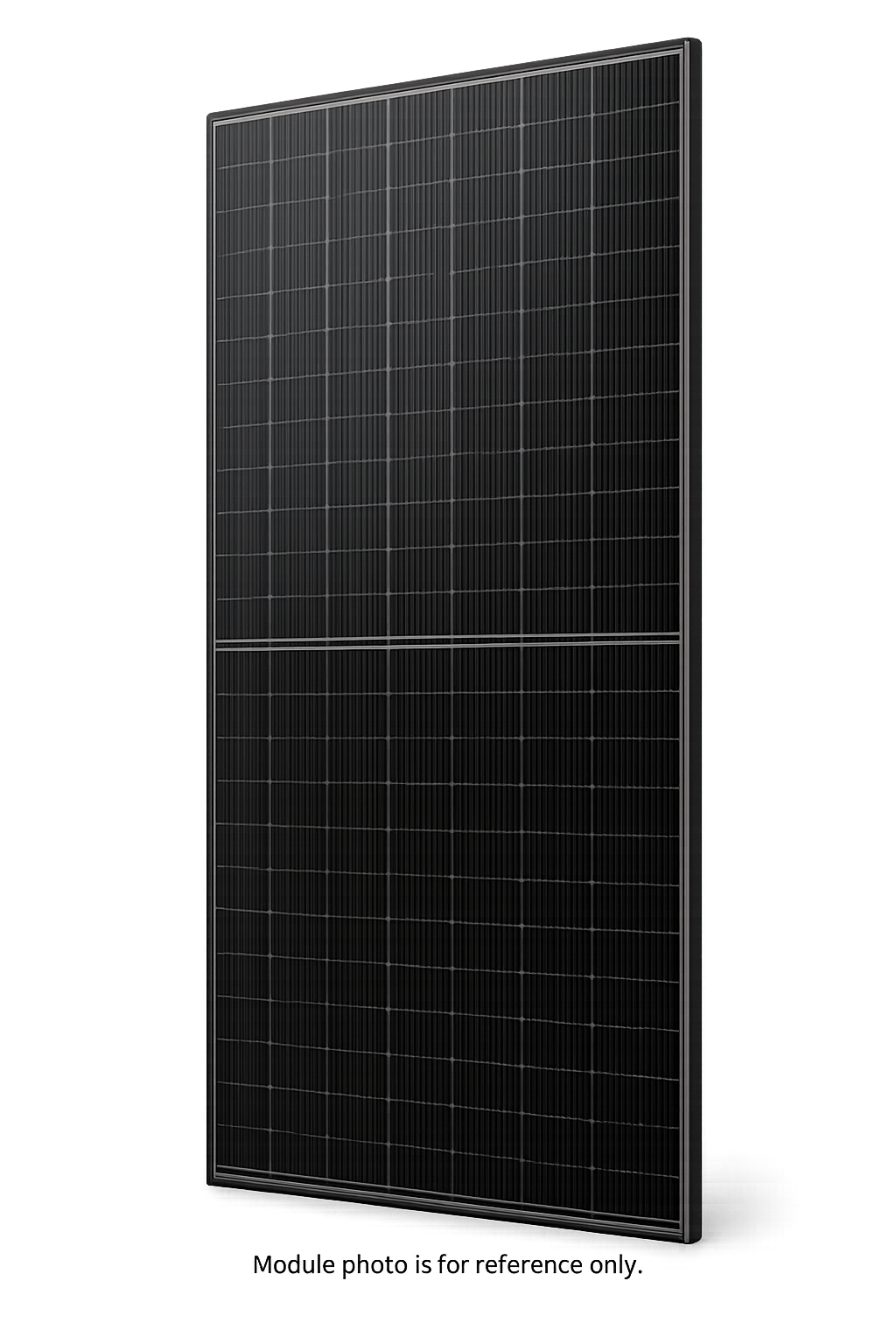

N-Type TOPCon Bi-Facial Solar Panel
This n-type TOPCon bi-facial module is designed to deliver higher power output and superior performance for utility and commercial applications. Built with advanced multi-busbar (MBB) TOPCon cell technology and half-cut configuration, it ensures better temperature-dependent performance and reduced risk of hot spots.
The module offers excellent power generation with enhanced mechanical load capacity, making it suitable for harsh environmental conditions. It also provides better shading tolerance and improved durability over time.
With excellent anti-LID and anti-PID performance, along with a low temperature coefficient, this module ensures consistent and reliable energy output. It is fully compatible with mainstream trackers and is a cost-effective solution for large-scale solar power plants.
Get More Information – 570W–590W TOPCon Bi-Facial Panel
Power Output Watt
570W – 590W
Maximum Efficiency
Up to 22.8%
Power Tolerance
0~+5W
Cells
144 Half-Cut Cells
Features
Supports all mainstream solar tracking systems, ensuring optimal alignment with sunlight for maximum energy generation.
Designed for large-scale solar plants, delivering high efficiency with reduced overall system cost.
Maintains stable performance even under partial shading conditions, reducing energy losses.
Advanced TOPCon technology minimizes light-induced degradation and potential-induced degradation, ensuring long-term reliability.
Provides higher energy yield due to bifacial design and improved cell efficiency
Built to withstand high wind and snow loads, making it suitable for harsh environmental conditions.
With a Pmax temperature coefficient of -0.30%/°C, ensures stable performance even in high temperatures.
Generates additional power from the rear side, increasing total system output.
Utilizes advanced n-type TOPCon cells for superior conversion efficiency and performance.
Designed for durability with minimal degradation over time, ensuring consistent output.
Backed by long-term performance and product warranties for peace of mind.
Optimized for large-scale solar installations with high durability and performance stability.
ELECTRICAL DATA(STC)
| Power Output(Pmax) | W | 570 – 590 |
| Power output tolerances (∆Pmax) | 0 ~ +5W | |
| Module efficiency (ηm) | % | 22.1% – 22.8% |
| Cell efficiency (ηm) | % | 22.5% – 23.0% |
| Voltage at Pmax (Vmpp) | V | 43.21 – 44.06 |
| Current at Pmax (Impp) | A | 13.19 – 13.39 |
| Open-circuit voltage (Voc) | V | 51.22 – 52.16 |
| Short-circuit current (Isc) | A | 14.08 – 14.32 |

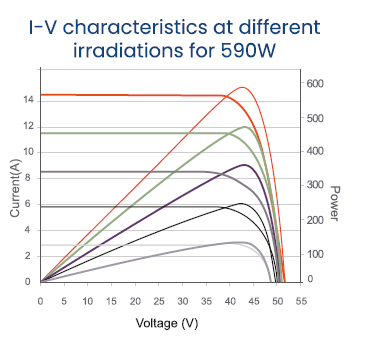

Module characteristics at a constant module temperature of 25°C and varying irradiance levels.
